Using Icons

Icons from Figma

The ED. Web Handoff Figma plugin exports icon code from Figma as a single React/TypeScript file, along with a helper <Icon /> component.

When an exported SVG only uses one colour, the export replaces fill and stroke with currentColor. This is ideal for UI glyphs, but it is not a good fit for multi-colour illustrations.

Artworking

The export requires that icons have been artworked correctly, with these requirements:

Icons must be defined as individual Figma components.
Icon component names must be named Icon/{name} or Icons/{name}, eg. Icon/User.
Icons must live in the ⚛️ UI Kit page.

If these requirements are not met, then the Figma plugin will not find the icons.

Exporting Process

Open the Plugin

In Figma Design Mode, navigate to 'Plugins → From ED. → ED. Web Handoff'.

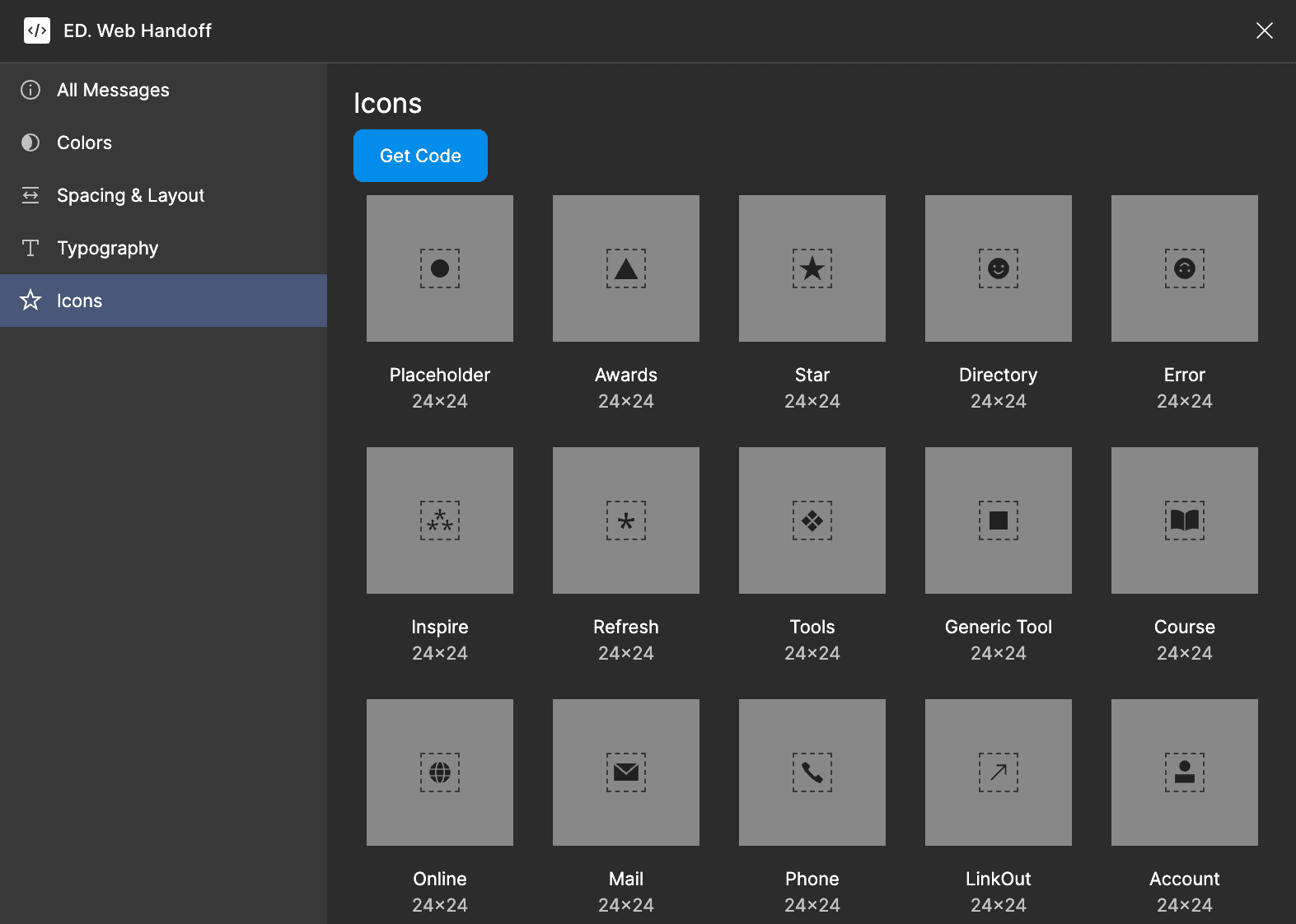

Preview Icons

Select 'Icons' from the sidebar. Verify that the icons display correctly.

Icon Listing

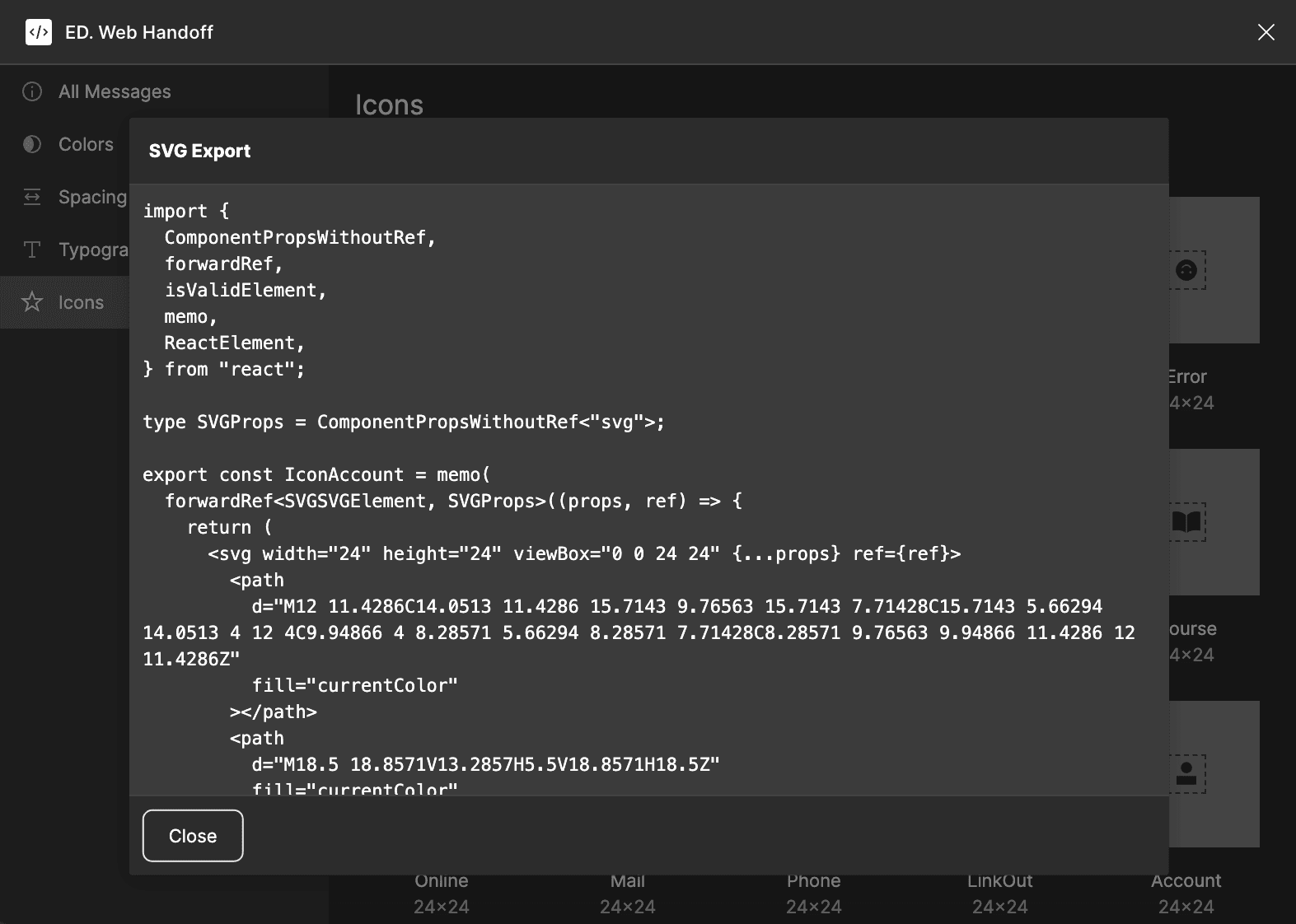

Export

Click 'Get Code'.

Code Export

Copy and Paste

Copy and paste the output into your codebase, into a single file. If the icons are adjusted later, you can come back and repeat the process again, overriding the file.

Development

`<Icon />`

The generated file contains an Icon component. You can use this component like so:

import { Icon, IconClose } from '~/components/atoms/icons'

// Icon colour will inherit text color
<Icon name="plus" />

// Override icon colour
<Icon name="delete" className="text-red" />

// Render an icon directly
<IconClose />

Note that in the example above, if icon is undefined, the <Icon /> component will render null.

`IconName` and `IconRef`

The IconName and IconRef types can be used for type-safety when creating components that accept icons as props.

Here's an example of what the Figma plugin generates:

// The `IconName` type is a union of the icon names, camel-cased.
export type IconName =
  | "close"
  | "dot"
  | "down"
  | "menu"
  | "plus"
  | "right"
  | "circleClose"
  | "circleMinus"
  | "circlePlus"

// The `IconRef` type accepts either an icon name, or a JSX element like <svg />
export type IconRef = IconName | ReactElement

You can use the IconName like so:

import { type IconName } from '~/components/atoms/icons'

type Props = {
  icon?: IconName
  label: string
}

export function Button(props: Props) {
  return <button>
    <Icon name={props.icon} />
    {props.label}
  </button>
}

// Usage with an icon:
<Button icon="plus" label="Add" />

// Without an icon:
<Button label="Add" />

// ❌ TypeScript error:
<Button icon="jshfkajsdhfahsdf" label="Add" />

Alternatively, if your component should also accept icons from other component libraries, or inline-svg, you can use IconRef instead.

import { type IconRef } from '~/components/atoms/icons'

type Props = {
  icon?: IconRef
  label: string
}

export function Button(props: Props) {
  return <button>
    <Icon name={props.icon} />
    {props.label}
  </button>
}

// Usage with an icon name:
<Button icon="plus" label="Add" />

// Usage with an icon component
<Button icon={<IconPlus />} label="Add" />

// Usage with an arbitrary SVG
<Button icon={<svg />} label="Add" />

You can also create your own subset of icon names, based on some prefix:

export type CircleIcon = Extract<IconName, `circle${string}`>
// ^ type CircleIcon = "circleClose" | "circleMinus" | "circlePlus"

`const ICONS`

Finally, you can also access the full set of icons using the ICONS variable that is exported.

import { ICONS } from '~/components/atoms/icons'

<select>
  {Object.keys(ICONS).map(name => (
    <option key={name} value={name}>{name}</option>
  ))}
</select>

Icon Styles

For one-off styles, add className to the icon when it is used.

<Icon name="delete" className="size-6 text-red" />

You can also apply global styling to all icons, since an .icon class name is automatically added to every icon rendered with the <Icon /> component:

@layer components {
  .icon {
    @apply block flex-none aspect-square size-[1.5em];
  }
}

The example above ensures that icons don't grow/shrink when used in a flex container, and scale up and down automatically based on font size (which you may or may not want).
